PRODUCT DESCRIPTION

Crowd control barriers, known as pedestrian barriers, are made of high quality tube, very strong and durable and quick and easy to be deploy at a construction site or event. this kind of temporary steel barrier fence is an effective crowd control and site demarcation product extensively used in public areas, such as event, sport venue, public rallies, demonstration, outdoor festival, concerts.

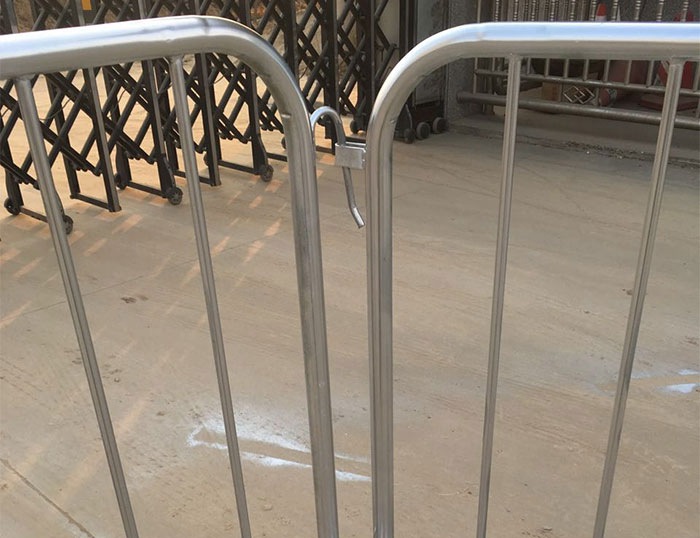

Crowd control barriers, are designed to be combined with the next obstacle by means of fixed hook and loop on both sides. No additional couplers are needed to connect the barriers together. This versatile steel barrier is easy to stack, which means they can be easily moved from one site to another.

  • Use 360 degree full weld for exceptional strength and high security.
  • Light weight, easy to install and flexible to move.
  • Resistant to corrosion and rust, durable and long-lasting.
  • Attractive variety of colors to choose from.
  • Smooth surface that will not scratch your fingers.

TECHNICAL PARAMETERS
  • Material: iron steel tube or stainless steel tube
  • Panel Width: 2.0 m, 2.5 m
  • Panel Hight: 1.1 m, 1.25 m, 1.5 m
  • Frame Tube: φ32 * 1.5 mm, φ38 * 1.5 mm, φ42 * 1.5 mm, φ48 * 1.5 mm
  • Infilled Tube: φ12 * 0.7mm, φ14 * 1.0 mm, φ16 * 1.0 mm, φ20 * 1.2mm, φ25 *1.2 mm
  • Crowd Barrier Fence Foot: welded on the frame or removable
Crowd Barrier Panel Dimensions 2.0 * 1.1 m, 2.0 * 1.5 m, 2.5 * 1.2 m, etc.
Crowd Barrier Frame Diameter 32 mm, 38 mm, 42 mm, 48 mm O.D
Infill Tube Diameter 12 mm, 14mm, 16 mm, 20 mm, 25 mm O.D
Vertical Tube Spacing 60 mm, 100 mm, 120 mm, 150 mm, 190 mm, 200 mm
Surface Treatment Type

• Hot-dipped Galvanized crowd control barrier

• PVC Coated after galvanized crowd control barrier

• Powder Coated after galvanized crowd control barrier

Crowd Control Barrier Feet Type

• Detached flat feet

• Bridge feet

• Settled "^" type feet

Other lengths, widths, tube diameter and tube thickness of crowd control barrier can be customized.

SURFACE TREATMENT

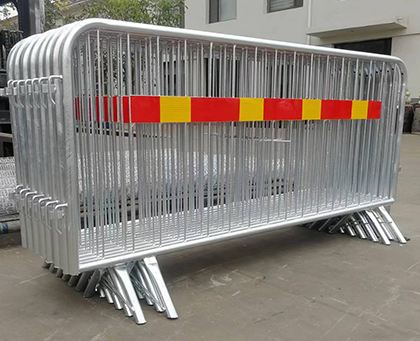

  • Hot Dipped Galvanized Steel Barrier

    Through the Hot dipped galvanizing process after welding, a protective layer is formed on the steel surface. This coating can effectively prevent oxidation corrosion and prolong the service life of steel.

    Surface Treatment

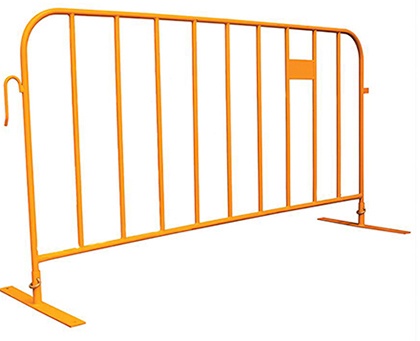

  • PVC Coating crowd control Steel barrier (Plastic Coating) or Powder Coating crowd control Steel barrier after galvanized.

    We choose high quality powder for spraying, which combines with the galvanized layer on the steel surface to form a more effective protective layer. It can better prevent the steel from oxidation and corrosion. Therefore, our fencing system can stay beautiful and strong for a longer time, and this treatment will make the fence more beautiful.

    Surface Treatment

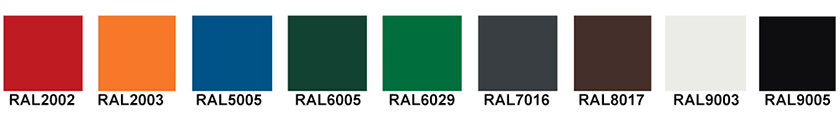

POPULAR COLORS
Popular Colors

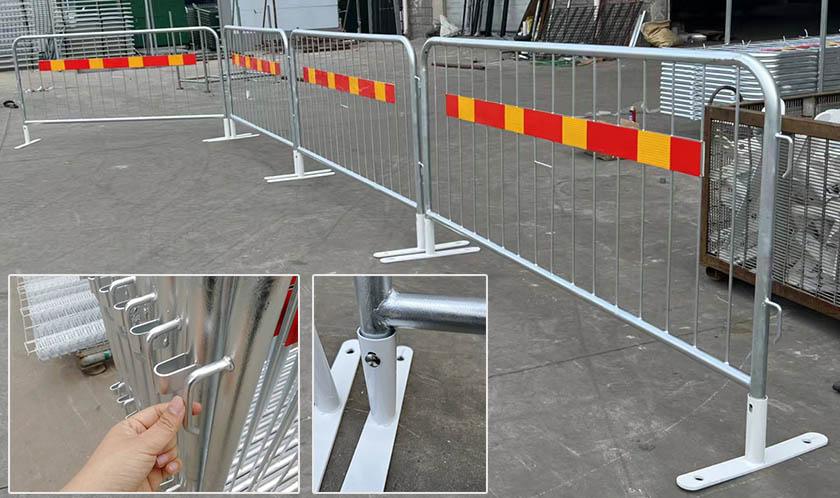

DETAILS
Details Image

TYPES OF CROWD CONTROL BARRIER

There are three types of Crowd Control Barrier:Flat Feet Crowd Control Barrier, Settled "Λ" Shape Feet Crowd Control Barrier, bridge feet Crowd Control Barrier.

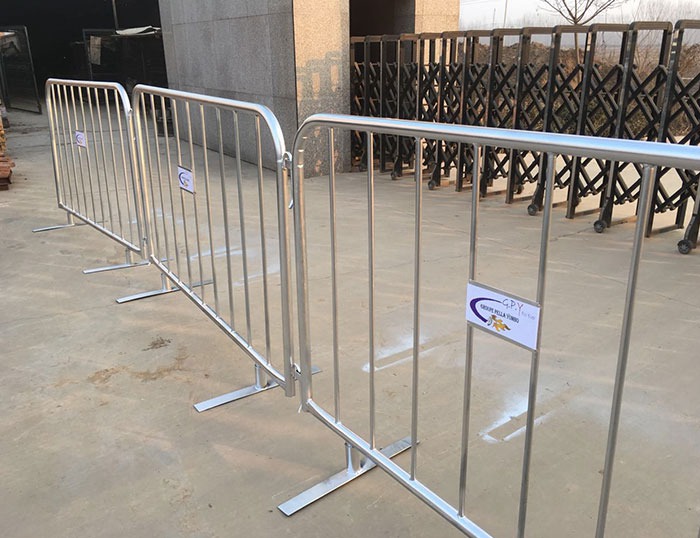

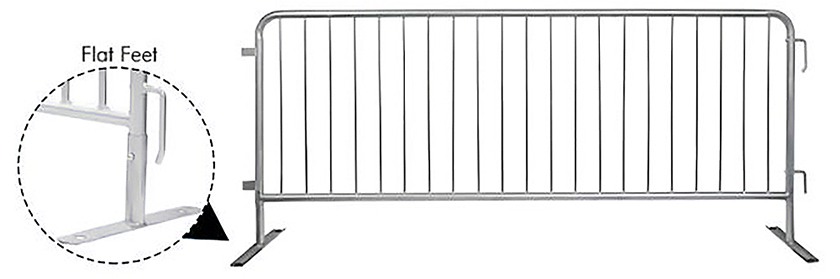

  • Flat Feet Crowd Control Barrier. This kind of Steel Crowd Control Barrier Fence has two bases foot, this base feet made of a welded iron plate and a short round tube. The base is screwed to the Barricade Fence panel and is suitable for use on flat surfaces. It has two holes in the base which can be screwed into the ground when required to make it more stable.

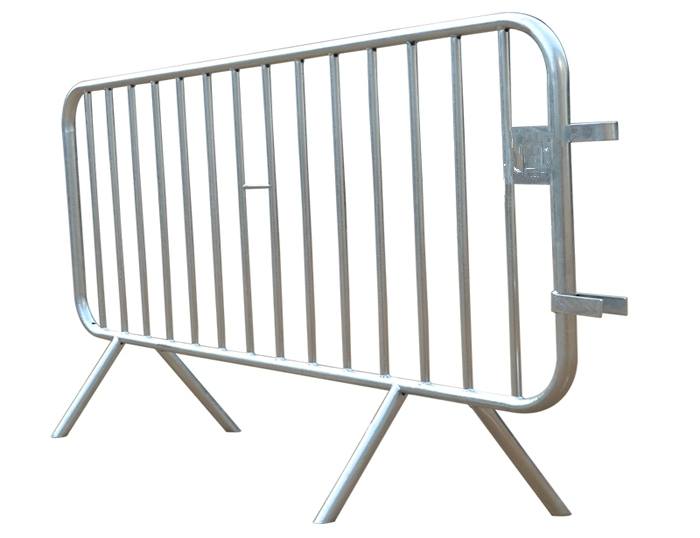

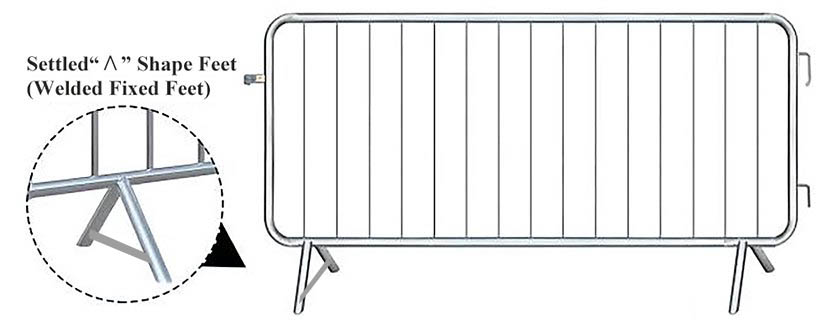

  • Welded Fixed Feet Crowd Control Barrier also named Settled "Λ" Shape Feet Crowd Control Barrier. This kind of Steel Crowd Control Barrier Fence has two bases foot, this base feet is made up of two short round tubes welded to each other on the lower frame of the Barrier Fence. The two round tubes are in the shape of a "Λ". They are connected by a steel bar. This makes the base more durable. Suitable for all surfaces.

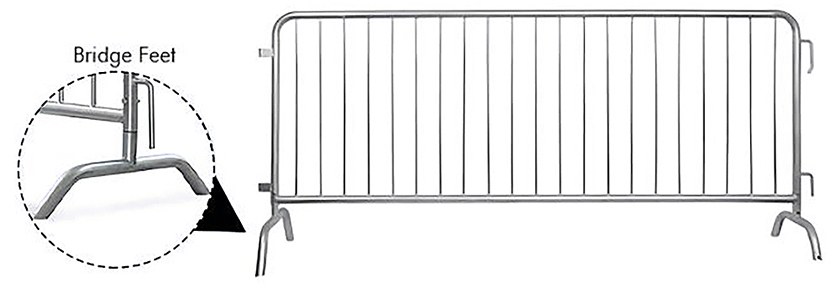

  • bridge feet Crowd Control Barrier.The Steel Crowd Control Barrier Fence, which has two foot bases. The base is made of a bridge-shaped round tube and a short vertical tube welded together. The final base and the Barrier Fence Panel are attached by screws. Stable structure and suitable for all kinds of road surfaces.
    Popular Colors

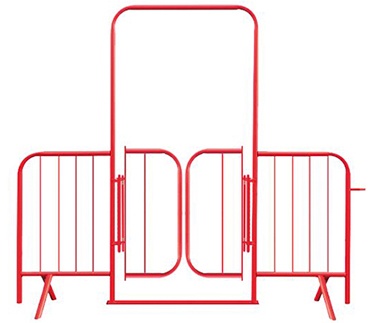

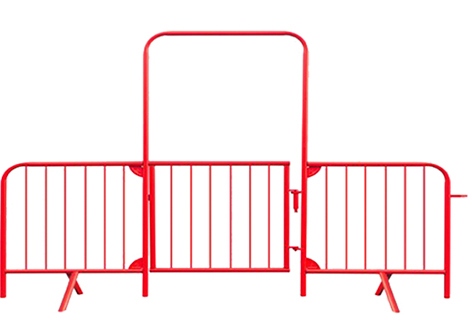

WALKTHROUGH GATES

Huaguang manufactures a wide range of Crowd Control Barriers and also offers a wide range of walkthrough gates to match the fence including single and double gates, which can be customised to suit the customer's needs. We can offer our customers free design solutions.


PACKAGE

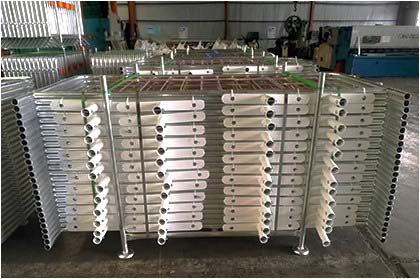

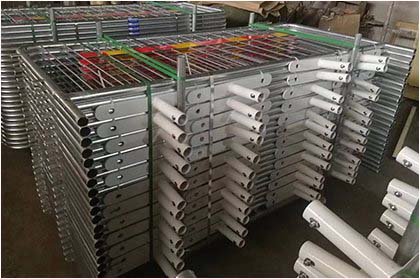

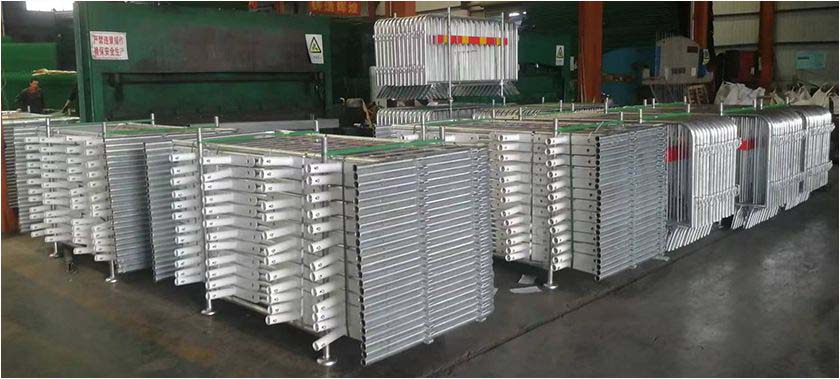

Place the installed base crowd control barriers on the special iron pallet, which will have four vertical tubes welded to the pallet. This is used to secure the steel barricade fences so that it does not wobble. Finally it is tied with iron strapping or plastic strapping. After careful packing, the steel barricade fences will not be damaged during transport and handling.


APPLICATION

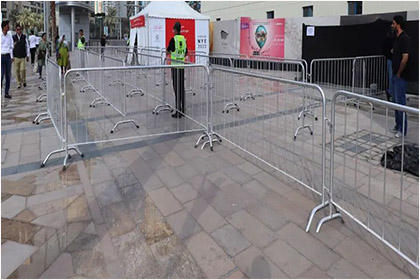

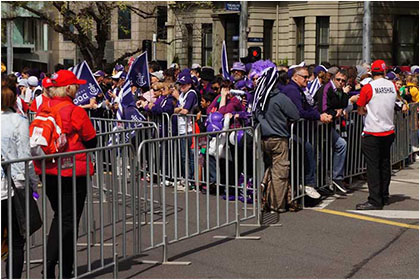

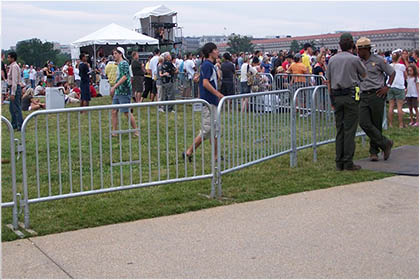

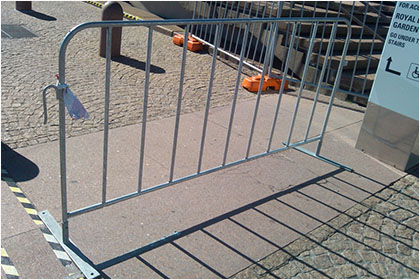

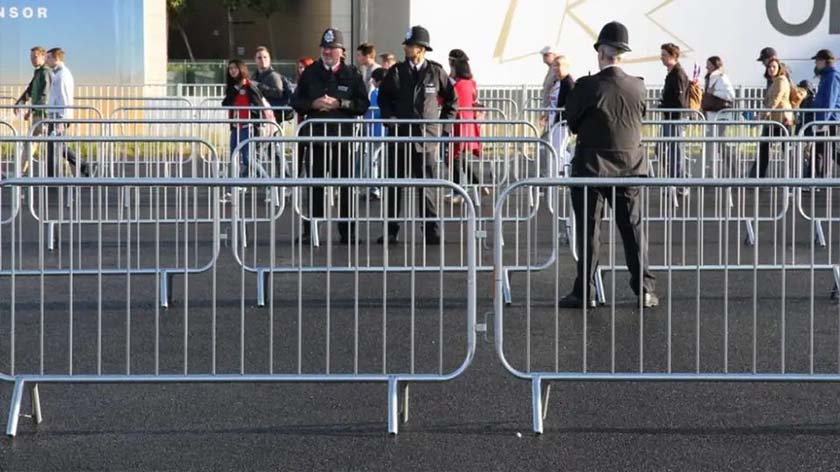

Because the Pedestrian barriers are easy to install, move and remove, they can be quickly assembled to form a separation line and are therefore widely used at temporary events, entrances to pavilions, roads etc. to control the entry of people or to keep crowds moving in an orderly manner, preventing stampedes, etc.

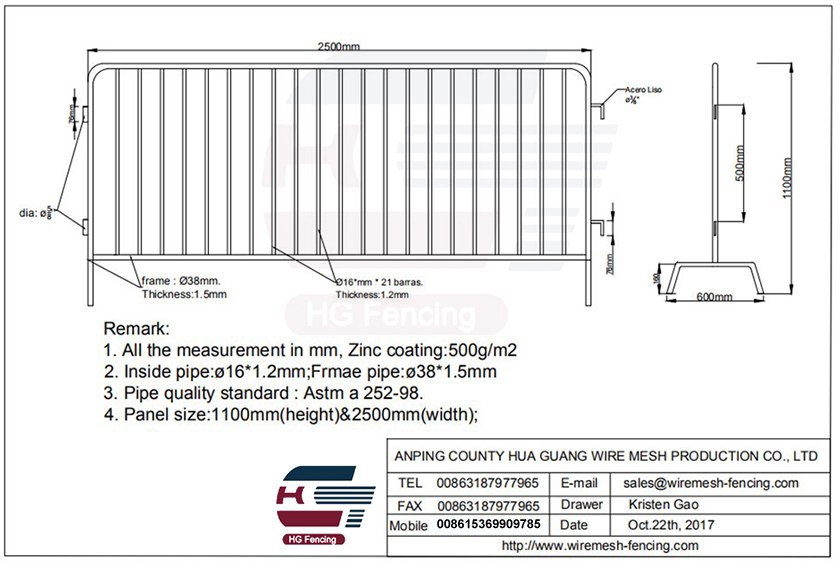

DRAWING
Head Types
